PT. SHERICH INTERNATIONAL SUPPLY

  Type : FUB-Easy-7   Size   : 7mmx10mmx100mm   Q'ty   : 1 ROLL

Type    : TPH Size      : 8,5mmx12,5mm Length : 100m = 1 ROLL

     For air-paint, air-spray, and in-factory air tools      Compared to conventional urethane hoses, this hose has greater resistance against sparks due to                       the inclusion of spark resistance substances, which is appropriate for using at welding sites and                       automobile service garages, etc.          Specifications: Working temperature limit: Between -40℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum  working pressure　 MPa at20℃ Brust pressure MPa at 20℃ Minimum bending radius (mm) Weight (kg/m) Regular size weight (kg) STH-6510 6.5 10 100 1.5 7.2 30 0.057 5.7 STH-8512 8.5 12.5 100 1.5 7.6 40 0.083 8.3

     For air-paint, air-spray, and in-factory air tools      With flexibility and light weight, this hose is appropriate for construction sites.            Specifications: Working temperature limit: Between -40℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Brust pressure MPa at 20℃ Minimum bending radius (mm) Weight (kg/m) Regular size weight (kg) Delivery unit Color TPH-6510 6.5 10 100 1.5 7.2 30 0.057 5.7 1 ● ● TPH-8512 8.5 12.5 100 1.5 7.6 40 0.083 8.3 1 ● ● TPH-1116 11 16 50 1.5 8.0 45 0.128 6.5 1 ● -

    For air-paint, air-spray, and in-factory air tools     With the increased smoothness, this hose is easy to carry and improves the workability.                      Superior in water resistance, elasticity, and airtightness, this hose is appropriate for air                       tool piping.            Specifications: Working temperature limit: Between -5℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Brust pressure MPa at 20℃ Minimum bending radius (mm) Weight (kg/m) Regular size weight (kg) SWH-6510 6.5 10 100 1.5 6 20 0.058 5.8 SWH-8512 8.5 12.5 100 1.5 6 40 0.083 8.3

    For antistatic piping of painting     Stripping off the ground wire is not necessary, which improves the workability.                       A reliable grounding can be achieved.     Specifications: Working temperature limit: Between -20℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Burst pressure　MPa at 20℃ Minimum bending radius (mm) Weight (kg/m) Regular size weight (kg) SEH-6 6.5 10 100 1.5 7 35 0.057 5.7 SEH-8 8.5 12.5 100 1.5 7 45 0.084 8.4 Electric resistance value (Ω) Nominal designation Length of hose (m) 10m Length of hose (m) 20m SEH-6 1.0×10 5 2.0×10 5 SEH-8 1.0×10 5 1.5×10 5 *1. Purpose: The values of electric resistance of conductive air hoses, 6.5 x 1B x 10 and 8.5 x 1B x 12.5 in 10m and 20m, are measured. *2. Test method: A joint (brass) is attached to the conductive air hoses, SE-H6 and SE-H8, and the electric resistance values between the hoses are measured.

    For piping of paints and solvents     The fluorine resin, used for the wetted layer, will demonstrate the significant resistance to                      water paints in addition to oil paints.       Specifications: Working temperature limit: Between -20℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Burst pressure　MPa at 20℃ Minimum bending radius (mm) Regular size weight (kg) FUB-easy-7 7 10 100 1.5 6 33 5.5

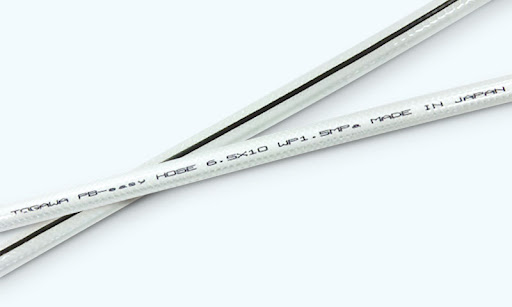

    For piping of paints and solvents     Superior in flexibility and pressure resistance, this hose will         Specifications: Working temperature limit: Between -20℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Burst pressure　MPa at 20℃ Minimum bending radius (mm) Regular size weight (kg) PB-easy-7 6.5 10 100 1.5 7.2 35 5.7

    For piping of paints and solvents     Superior in flexibility and pressure resistance, this hose will         Specifications: Working temperature limit: Between -20℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Burst pressure　MPa at 20℃ Minimum bending radius (mm) Regular size weight (kg) PB-easy-7 6.5 10 100 1.5 7.2 35 5.7

    Piping for paints and solvents     Reduces the load of workers.         Specifications: Working temperature limit: Between -20℃ and + 60℃ Nominal designation Inner diameter (mm) Outer diameter (mm) Regular size (m) Maximum working pressure MPa at20℃ Burst pressure　MPa at 20℃ Minimum bending radius (mm) Regular size weight (kg) P-7 7 10.0 100 0.5 2.3 45 5.1
